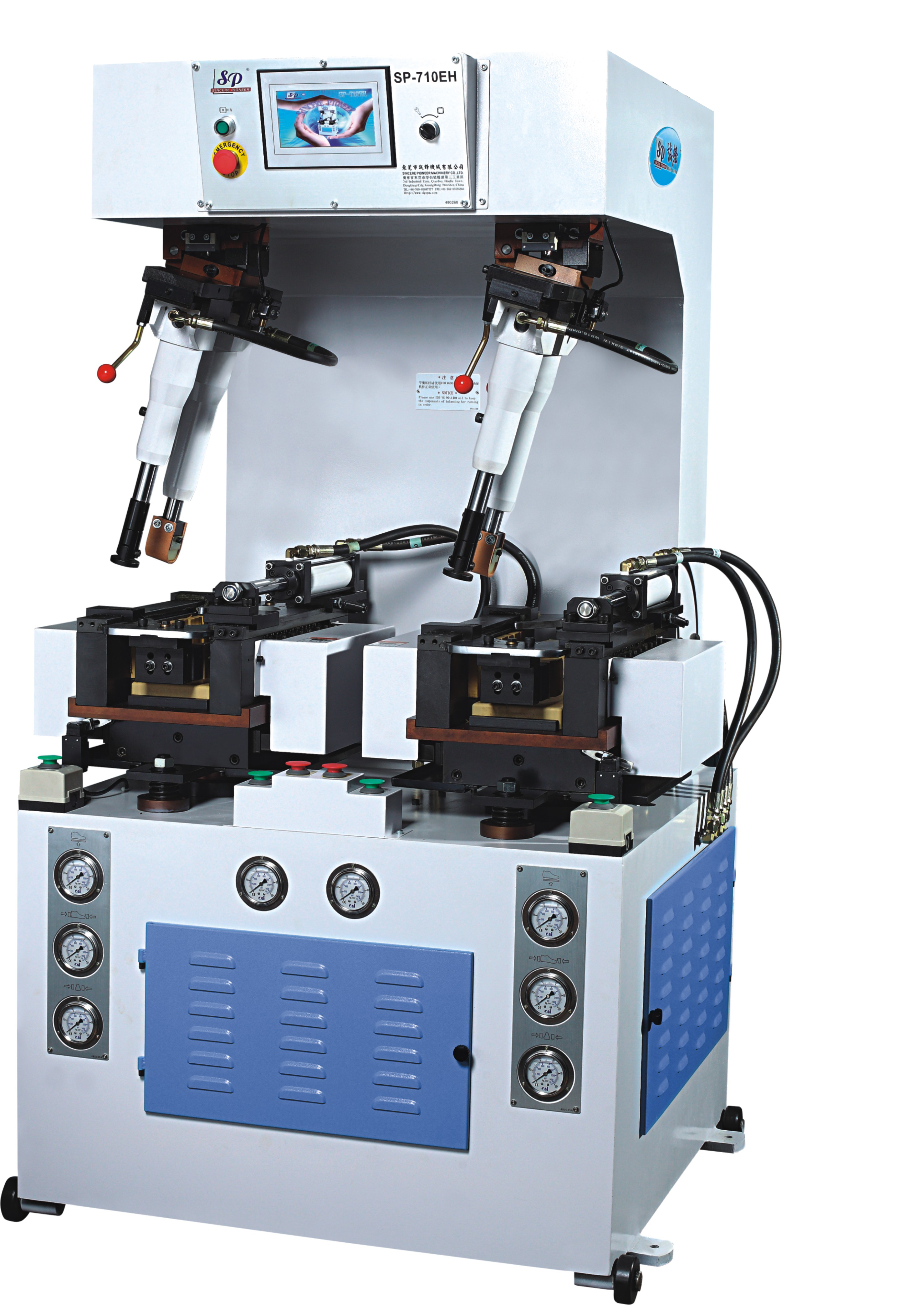

Computerized Programmable-Pressure Walled Sole Attaching Press

Product Manual  (Message board、Videos、E-Catalog → Member Center)

◎This machine is fully controlled by hydraulic system,this automatic sole attaching mechanism makes symmetry and perfect pressing which is necessary and helps the sole industry upgranding.

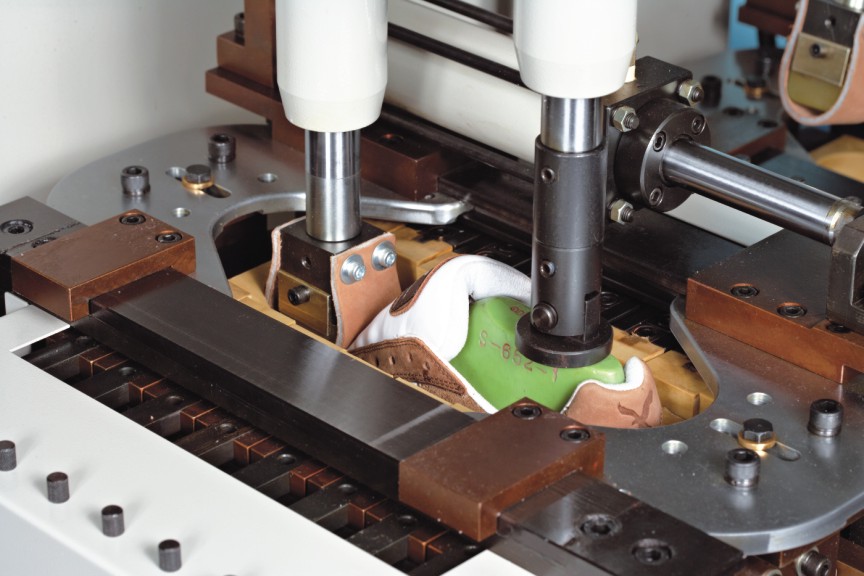

◎Rising hydraulic automatic balanced system is adopted for the mechanism of pressing rods,no need to adjust the heights of rods,which helps simplify operation.

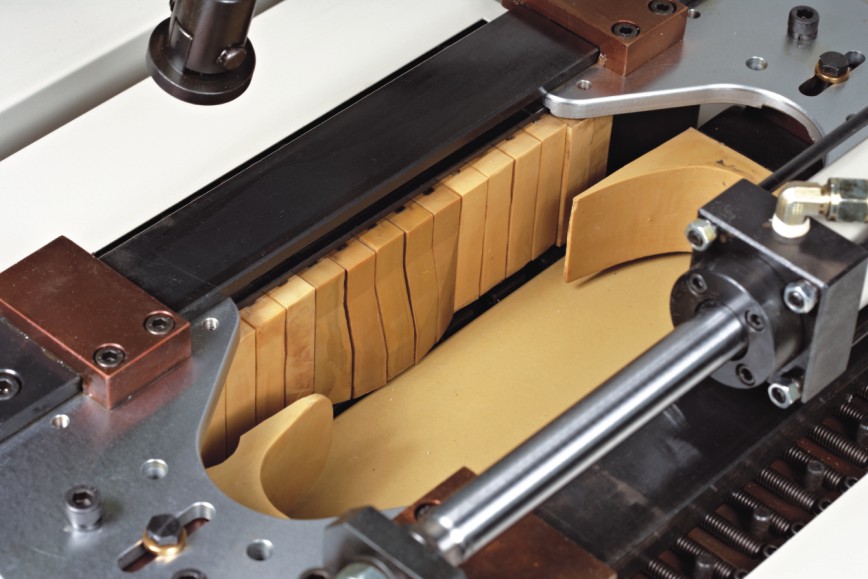

◎Side attaching mechanism:

SP-710E/EH has 16 pressing pads,for each side with self-balancing function to keep the contact surface perfectly fit,therefore the result of pressing would be better.

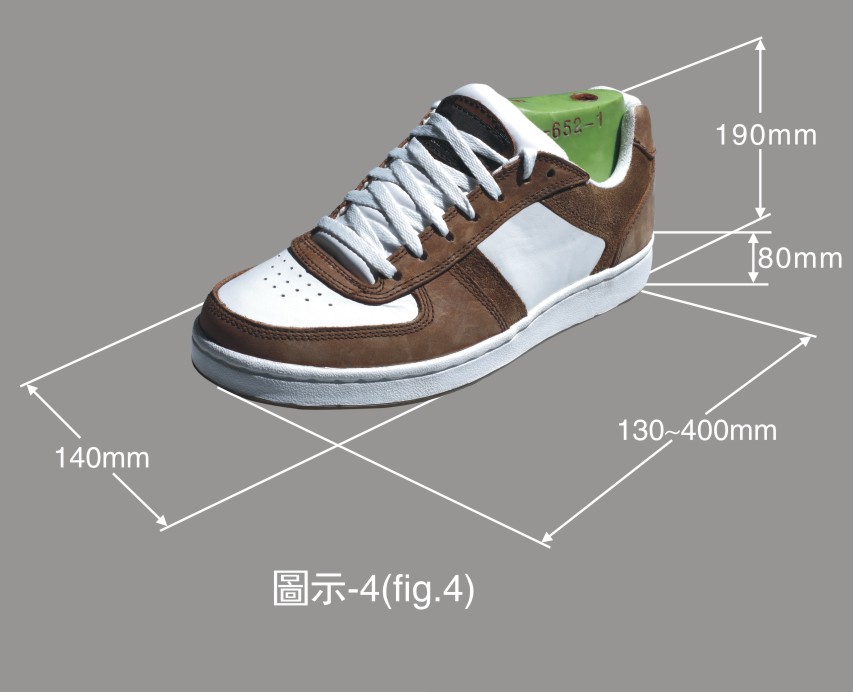

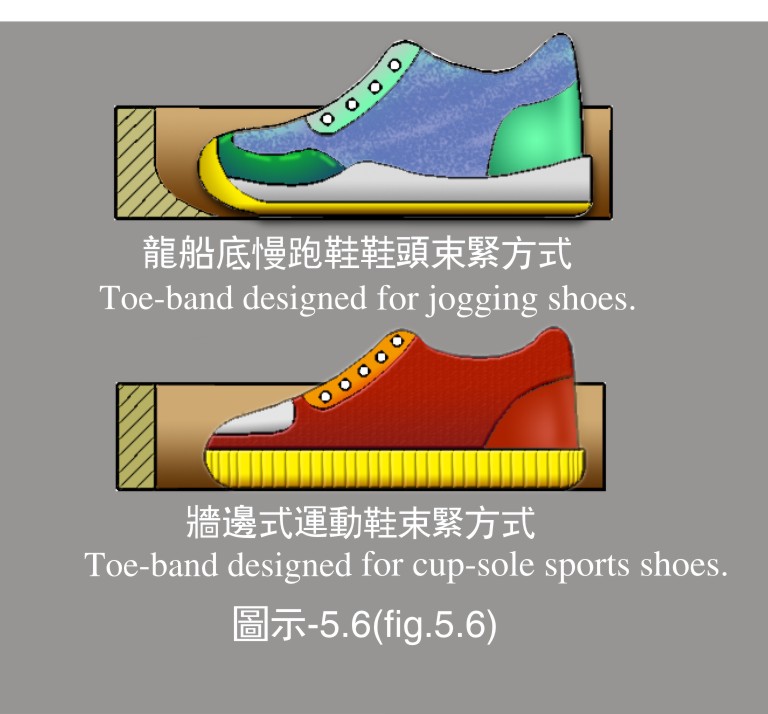

◎This machine is available foe shoes with last between 130mm to 400mm in length,140mm in width,190mm or below in height.Height below 80mm for walled out soles,such as jogging,walled sports and casual shoes.

◎SP-710E/EH Features:

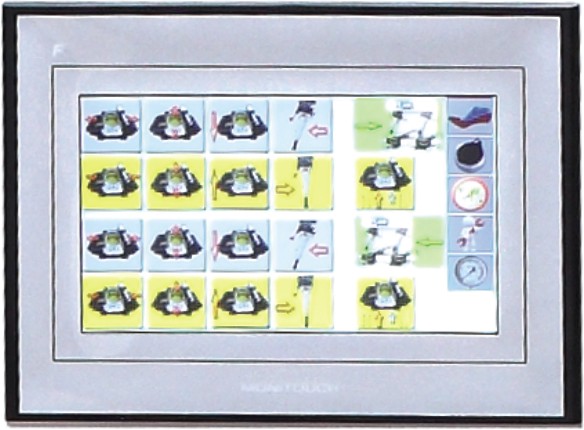

a.By using PLC controller and graphical Human Machine Interface,this machine is multifunctional and easy to control.

b.Setting pressure on HMI for different mechanisms according to defferent type of shoes,as the hydraulic pressure system is adopting proportional pressure control with 200 sets of progrmmable storage.

c.According to different type of shoes,all the movement timing,parameters and attaching functions of machine are able to be adjusted on the Human Machine Interface with programmable storage.

d.This machine has self-detection function,if any movement of machine or electtonic switch with malfunction,it will display on the Human Machine interface to save time in maintenance.
